Lantick Series
Lantick Series

LanTick allows the user to control electrical devices or read digital inputs over the web using any web enabled device, or dedicated android app.
We currently offer Lantick devices in following configurations:
Lantick PE-16-0: 16 relay outputs
Lantick PE-0-16: 16 optically isolated inputs
Lantick PE-0-8: 8 optically isolated inputs
Lantick PE-8-0: 8 relay outputs
Lantick PE-4-4: 4 optically isolated inputs and 4 relay outputs
Lantick PE-2-2: 2 optically isolated inputs and 2 relay outputs
Lantick PE-0-1: 1 optically isolated input
Lantick PE-1-0: 1 relay output

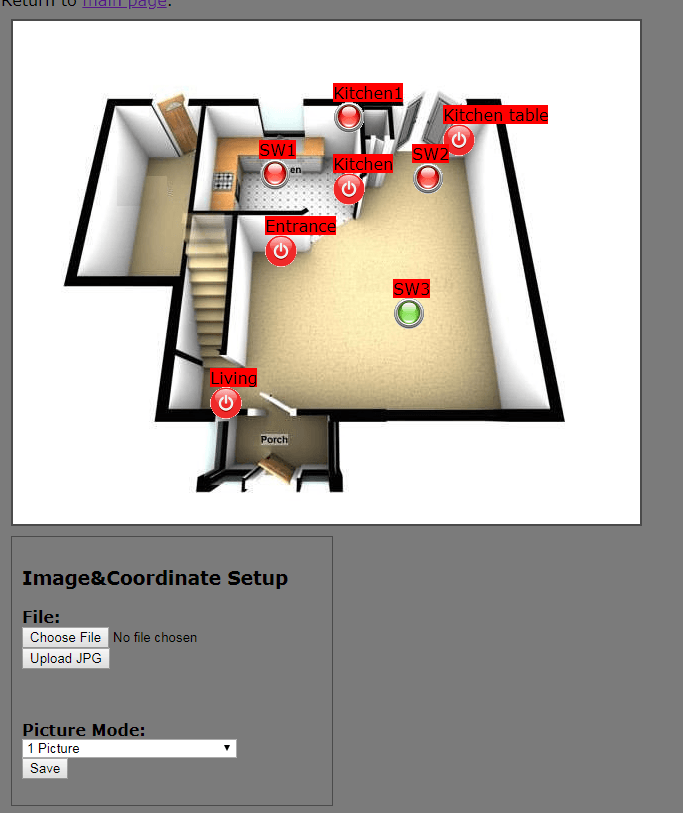

User can upload their own graphics into the module and visualise input status on the uploaded image
The device has a 2-level authorization (Administrator and User).

Reading the inputs status and changing relay outputs is possible by
  • internet browser
  • dedicated program running under Windows
  • Linux OS command line
  • MODBUS TCP protocol
  • SNMP protocol
  • HTTP (GET) protocol
  • KNX-IP protocol
  • smartphone/tablet with Android


There is also a free dedicated service for Inveo devices called Dashboard (dash.inveo.com.pl) where user can control the devices from anywhere without redirecting ports or pernament IP address.

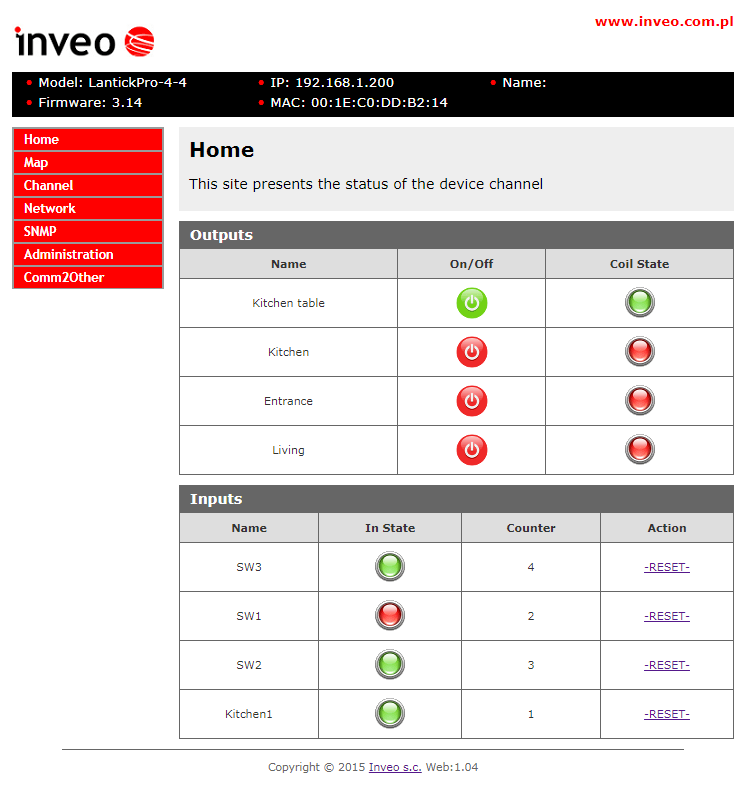

The following is a view of the main screen where user can see the number of the relay, the assigned name, the changing state and the indicator showing the current state. Each input has a counter with maximum frequency of 1kHz and maximum state of unsigned integer
Specification of Lantick series
  • Configuration interface: built-in web server
  • Number of outputs: 1,2,4,8
  • Number of outputs: 1,2,4,8
  • Type of outputs: Relay 250VAC 5A
  • Supply voltage 12-24VDC
  • Interface RJ45 (10BASE-T)
  • Supported protocols HTTP, TCP, SNMP, MODBUS TCP,
  • Working temperature 5 – 50 °C
  • Storage temperature -10 to 85 °C
  • Humidity 5-95%
