HERO WEB SENSOR

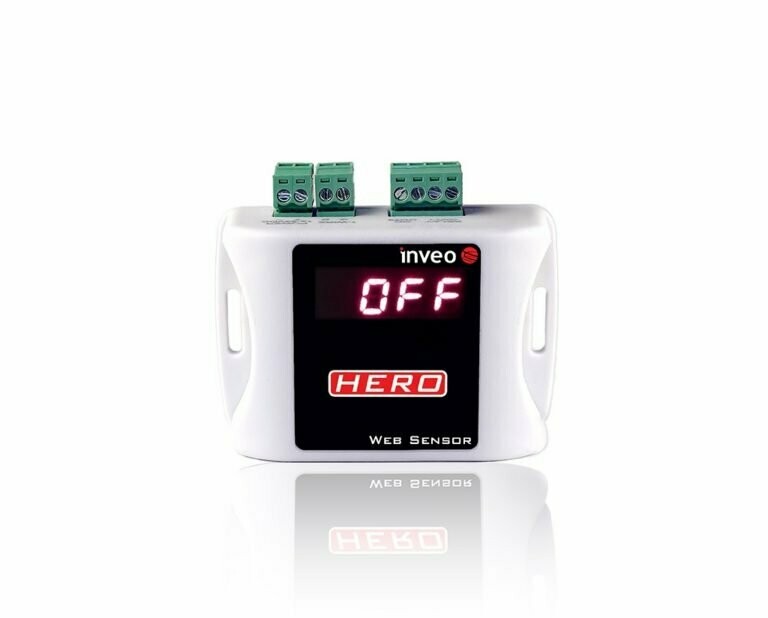

Hero Web Sensor is a small module that allows the user to monitor data from up to 4 different sensors.
It is adapted to read data from temperature, humidity, etc. sensors and 2 digital inputs. The device is equipped with a readable 7-segment LED display. The display can show measured values as well as current IP address and DHCP service status.

 COMMUNICATION
Communication with the module is done via a LAN. The user can read the measured data via:
  • embedded web server, using a standard web browser (preferred browsers are MOZILLA FIREFOX, OPERA, CHROME)
  • Windows / Linux command line
  • HTTP protocol
  • MQTT protocol
  • SNMP protocol
  • MODBUS TCP protocol
  • e-mail messages
  • syslog commands
The device works with Inveo Dashboard.


WEB APPLICATION

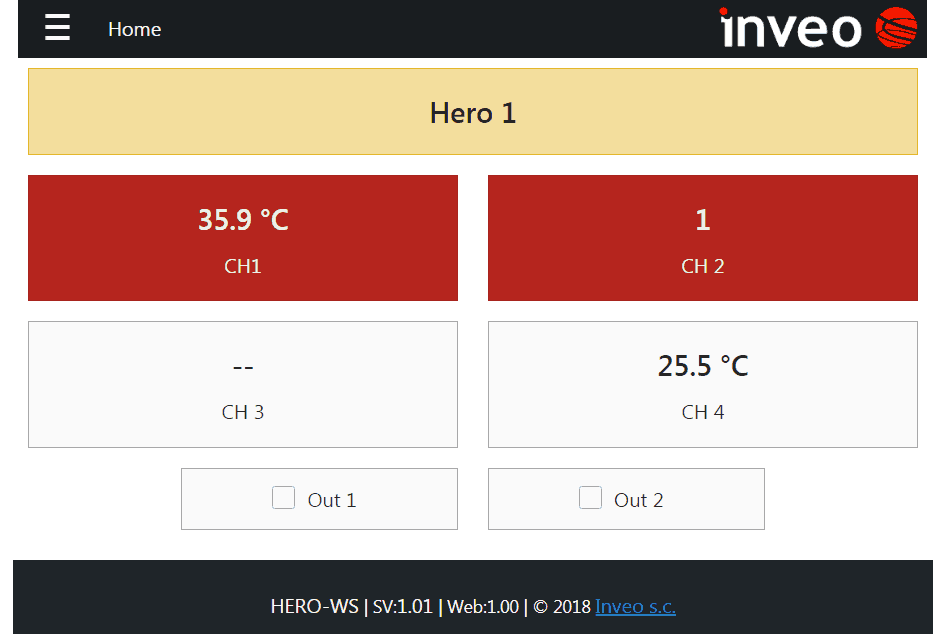

The device’s main page displays the current readings from the sensors and the status of the digital outputs.



CHANNEL SETTINGS
Hero Web Sensor allows to set the warning and alarm parameters measured above which alerts are activated. The warning status is signaled by the yellow background colour of the given channel, alarm state is indicated by red background. The data read from the sensors can be sequentially presented on the LED display.

For each channel following items can be set:
  • Upper and lower warning and alarm thresholds
  • Name and address
  • Hysteresis
  • Displayed value can be adjusted
  • Define whether data should be saved in the device’s memory
  • Specify how often the device should send information messages.

The module can be programmed by the user to respond to exceeding the set thresholds or to transfer the current value taken from the sensors by sending:
  • an e-mail,
  • a TRAP message,
  • a TCP frame,
  • a message to the MQTT broker,
  • a message to the Syslog server.

  • Data from the module can also be read and written using the Modbus TCP protocol.

The module supports SNTP protocol, so it gets the current time from SNTP servers. Synchronization occurs every 10 minutes. Time is used to log data from sensors in the internal memory. The data is available in the form of a time function on a graph or csv file.

DIGITAL OUTPUTS
Hero Web Sensor has two output channels:
  • relay OUT1
  • transistor OC – OUT2.
Each of the outputs can work in the following modes:
  • Astable – the relay cyclically shortcuts and opens the contacts,
  • Bistable – the relay has a fixed position, is on or off,
  • Single triggering – TimeBase.

TECHNICAL DATA
Power supply
PoE: 33V – 57V PoE IEEE 802.3af
DC: 12V – 24V DC
Power consumption: 1,5W

INPUT
  •  1-wire bus

OUTPUTS
OUT1:

Output type: relay
Maximum working voltage: 250V AC,
Maximum load current of the relay 8A
NO output (normally open),
Switch-on time: 1ms,
Turn-off time: 5ms,
Operating mode: bistable, astable, monostable

OUT2:

Output type: transistor OC
NO output (normally open),
Switch-on time <1ms,
Turn-off time: <1ms,
Operating mode: bistable, astable, monostable

LAN
Ethernet 1x10Mbps, RJ45

SENSORS AVAILABLE

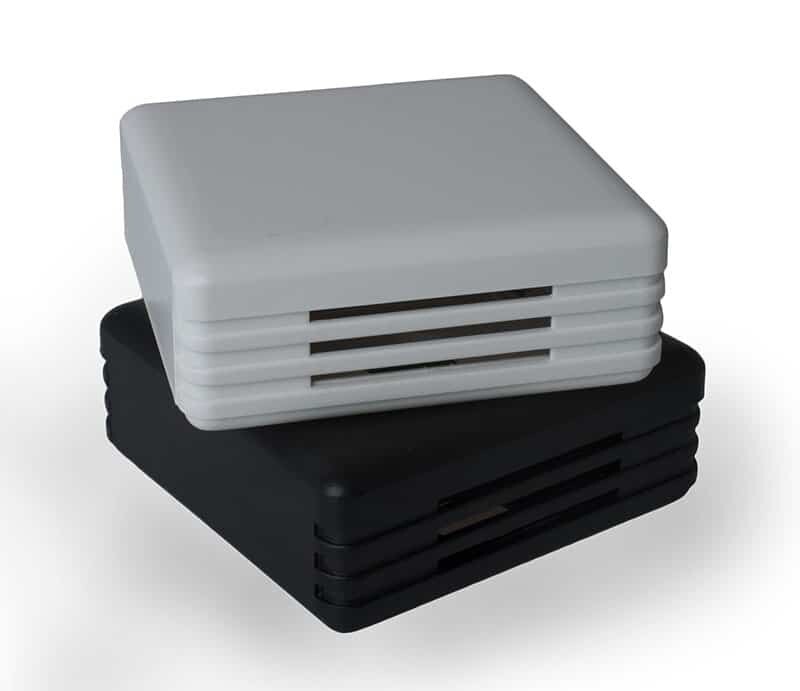

WebSensor T, WebSensor HT, WebSensor Combo

WebSensor series sensors are dedicated, among others, to the Hero module



WEBSENSOR-T
It enables the measurement of:

  • temperature – the sensor is mounted on a PCB
  • Temperature sensor used: DS18B20
  • Range of measured temperatures: -55 ° C to + 125 ° C
  • Accuracy: ± 0.5 ° C in the temperature range -10 ° C to + 85 ° C
  • Accuracy: ± 2 ° C in the temperature range -55 ° C to + 125 ° C

 WEBSENSOR-HT
It enables the measurement of:

  • temperature -the sensor is mounted on a PCB
  • relative humidity – a sensor mounted on a PCB
  • Temperatuere sensor used: DS18B20
  • Humidity sensor used: HIH5031
  • Range of measured humidity: 0 ÷ 100% RH
  • Accuracy: ± 3%
  • Working range: -40 ÷ 85 ° C

 WEBSENSOR-COMBO
It enables the measurement of:

  • temperature -the sensor is mounted on a PCB
  • relative humidity – a sensor mounted on a PCB
  • digital input CONTACT – it is possible to connect eg a door opening sensor
  • digital input LEAKAGE – it is possible to connect a flood sensor
  • Temperatuere sensor used: DS18B20
  • Humidity sensor used: HIH5031
